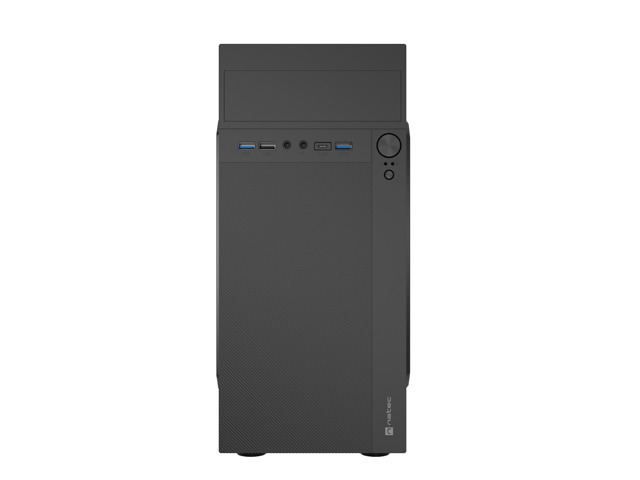

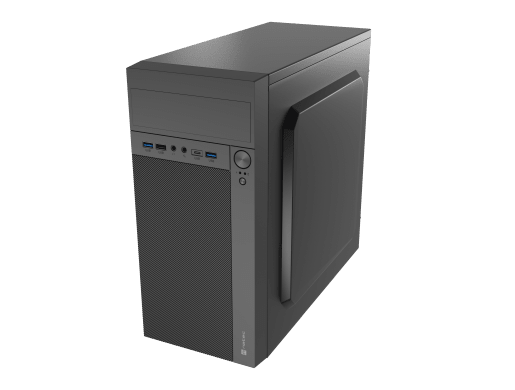

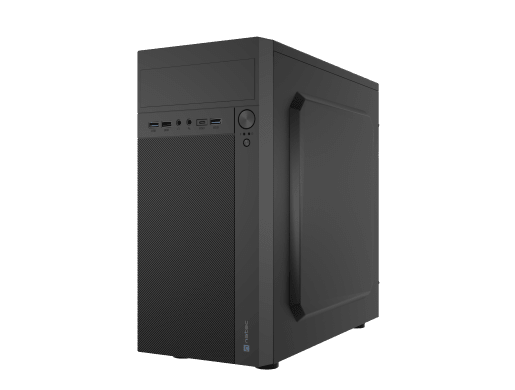

HELIX USB-C

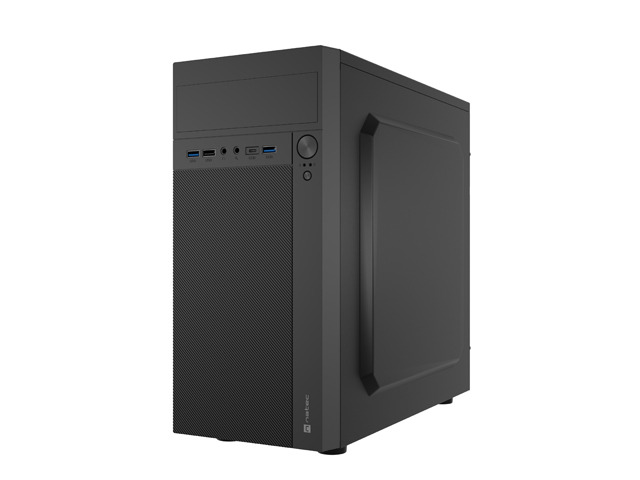

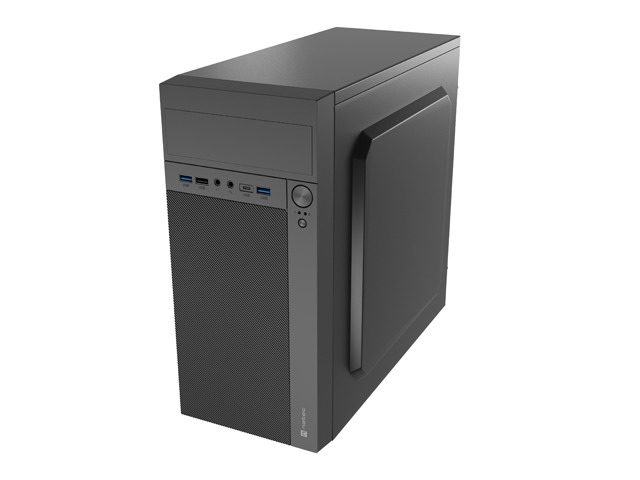

Meet Natec Helix USB C - a micro tower enclosure that will allow you to build a functional computer with a small size (compatible motherboards: microATX and mini-ITX) and improve daily use thanks to the expanded front panel with super-fast USB Type-C (in the standard 10 Gbit/s, USB 3.1) and three additional sockets USB Type-A: 2 × USB 3.0 (5 Gbit/s) + 1 × USB 2.0. Optimal temperatures? They will be helped by, among other things, numerous vents and an 80-millimeter exhaust fan, which we mounted in the back. This is what the Natec Helix.

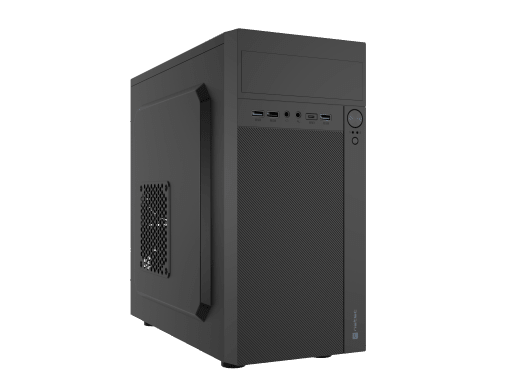

Are you looking for a functional base for your components? Look no further than Natec Helix - a universal case that boasts a simple, yet rigid construction made of metal and ABS, providing optimal protection for your computer's internal components. Its low-key appearance makes it a perfect fit not only for the office or home settings but also wherever a classic solution is needed.

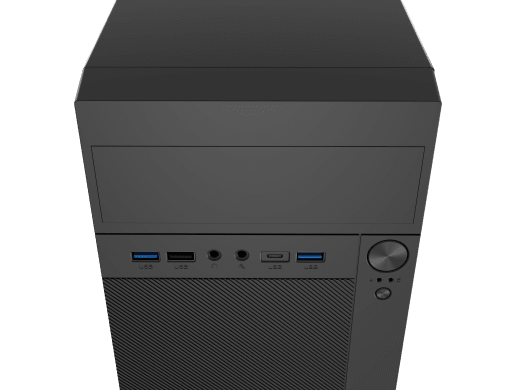

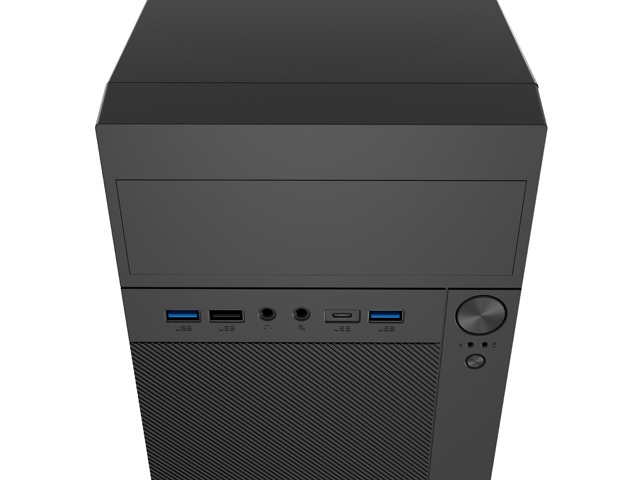

Want to transfer data faster than before? Use the USB C 3.1 slot offering 2 times faster data transfer (10 Gbit/s) compared to USB 3.0 (5 Gbit/s). What's more, the front panel will make it easy for you to connect other accessories as well. All thanks to 3 additional USB Type A ports (2 × USB 3.0 and 1 × USB 2.0) and 2 mini jacks for headphones, as well as a microphone. Save time and operate more efficiently.

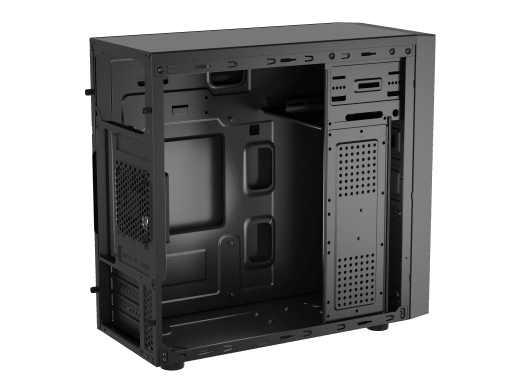

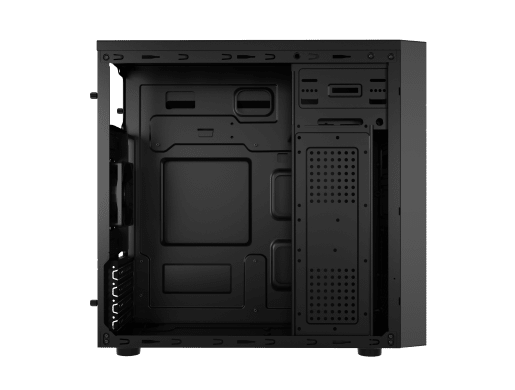

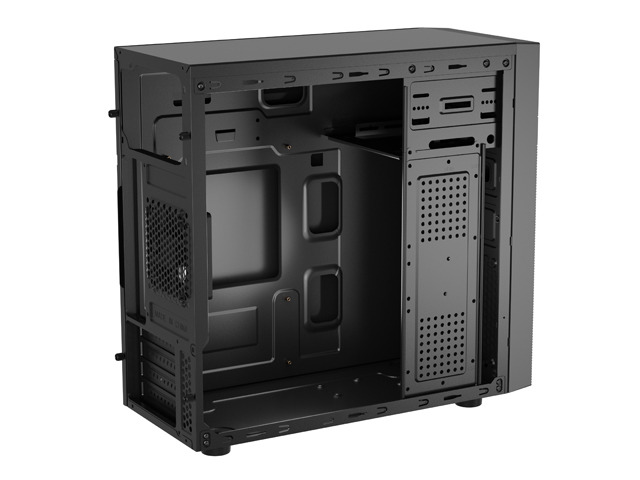

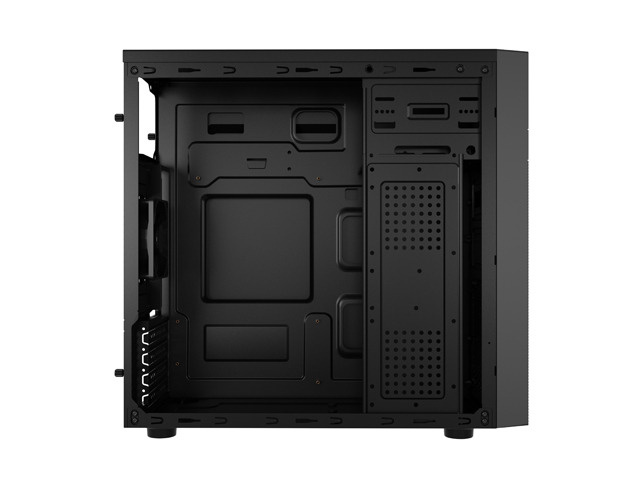

Do you value storage options? Natec Helix can house up to six drives! 3 slots for 2.5" SSDs, 1 slot for a 3.5" HDD and 2 hybrid slots for 2.5"/3.5" drives. You can also find the bay for other 5.25" device like DVD or Blue-ray drive. In Natec Helix you can mount a graphics card with a maximum length of 330 mm as well as a tower CPU cooler (up to 148 mm height). What you get is a wide array of configuration options at an affordable price.
Select the right motherboard and CPU not being bothered about issues with their installation. Natec Helix is compatible with microATX and Mini-ITX standards while having small external dimensions. A large number of slots for hard drives and reasonable space for mounting GPU allows to build efficient PC both for work and entertainment.

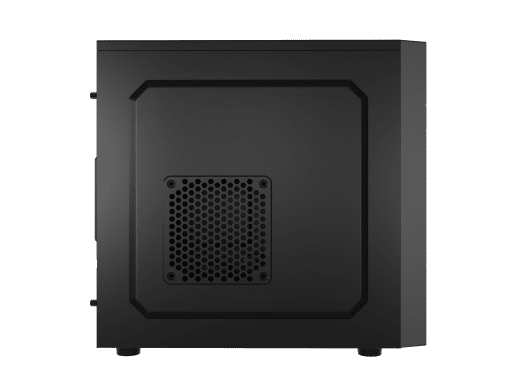

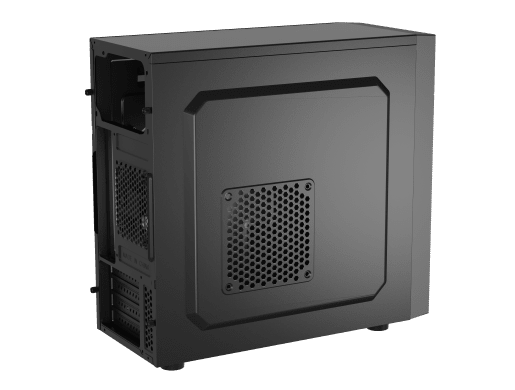

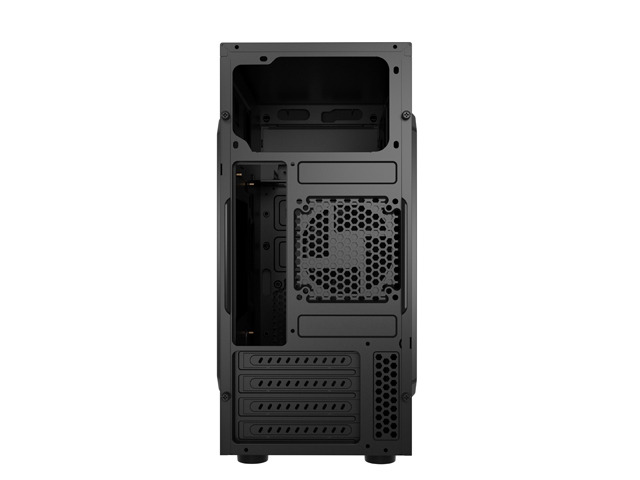

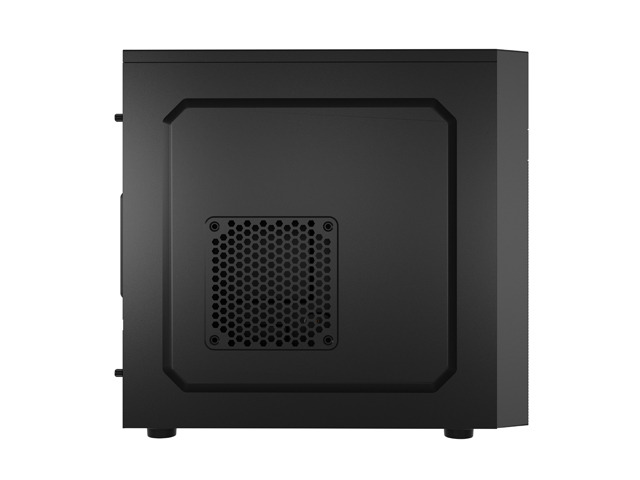

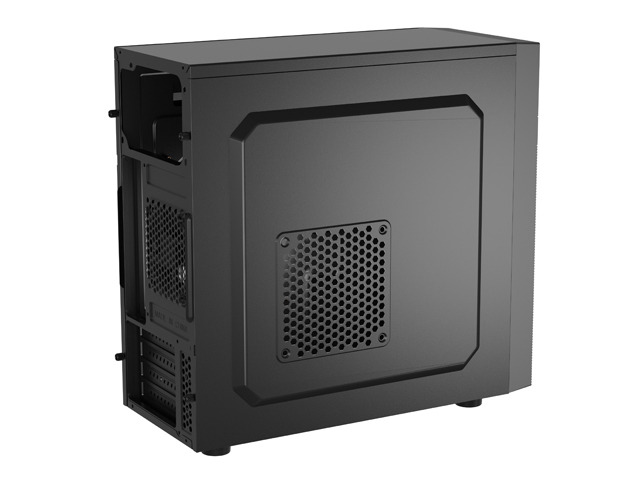

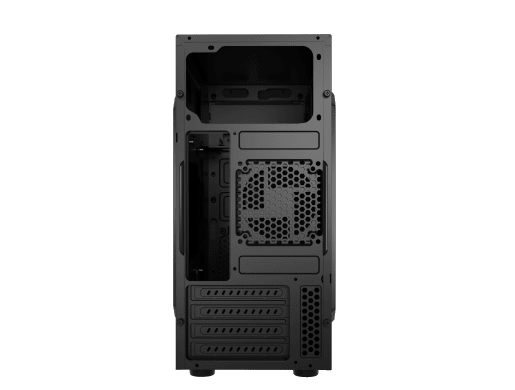

Optimal airflow is an important aspect which we have taken into consideration in Natec Helix Pc case. Among other solutions the pre-installed, located on the back of the case, 80 mm fan is responsible for exhausting hot air. You can also install two additional 120 mm fans on the front and side of the case. Fast and simple.
| Type of casing | Mini Tower |
| Motherboard form factor | Micro-ATX, Mini-ITX |
| Compatible power supply standard | ATX |
| Power supply mounting | Top |
| The maximum length of the PSU | 180 mm |
| Maximum CPU cooling height | 148 mm |
| Maximum length of the GPU graphics card | 330 mm |
| I/O panel | Mini Jack x2, Power & Reset button, USB 2.0 Typ-A x1, USB 3.0 Typ-A x2, USB 3.1 Gen2 Typ-C x1 |
| Type of side panel | Metal with partial perforation |
| Type of front panel | Plastic |
| Number of installed fans | 1 |
| Start-Up Voltage | 1x 80 mm |
| Max number of fans | 3 |
| Support for installation of fans - side | 1x 120 mm |
| Support for installation of fans - front | 1x 120 mm |
| Support for installation of fans - rear | 1x 80 mm |
| Liquid Cooling Support | No |
| Illumination | No |
| Number of expansion slots | 4 |
| Number of 2.5" drive bays (SSD/HDD) | 5 |
| Number of 3.5" drive bays (SSD/HDD) | 3 |
| Number of 5.25 "bays (optical drive) | 1 |
| PSU shroud | No |
| Power supply included | No |
| Protections | Padlock loop |
| Material | ABS, Steel |
| Colour | Black |
| Weight | 2.73 kg |
| Included Accessories | Set of assembly elements |
| Length | 390 mm |
| Width | 180 mm |
| Height | 366 mm |
Looking for a functional base for your components? Natec Helix is a universal case that stands out not only for its clever solutions, but also for its rigid metal and ABS construction, which positively translates into the protection of the computer's interior. Its subdued appearance will make it perfect for the office and home, as well as wherever classic solutions count.
